Errebi offers a range of covering machines (SP) able to satisfy all the needs of elastic covered yarn (E.C.Y.) manufacturers. Our machines are the natural evolution of the well-known GSP1/GSP2 RPR covering machines.
Our SP family is designed to comprise the following processing parameters:
- Single / Double covering;
- Core yarn in Spandex (Lycra) / Rubber;
- Cover yarn in Nylon, Polyester, Rayon, Cotton…;
- Take Up bobbin with Ø180 mm and length from 130-150-200 mm;
- Flanged bobbins with (standard) length 165mm and diameters from 68 up to 116mm;
Machines, in their various configurations, share the following characteristics, developed thanks to our strong experience alongside our customers:
- MTS hollow spindles type SGX;
- Spindles mounted on pivoting support for easier machine set up and maintenance, lower vibrations and better efficiency;
- Pre-draft shaft for Lycra with 1.3 fixed ratio;
- Heavy duty rubber pressure rollers;
- Possibility to switch from single to double covering easily, on the same machine;
- Independent drive for the each deck of spindle with Inverter driven motors;
Along side the standard range of machines, the HS Machine range is available for Frisè Yarns and high quality Elastic covered yarns.
Check out our full range of Covering Machines

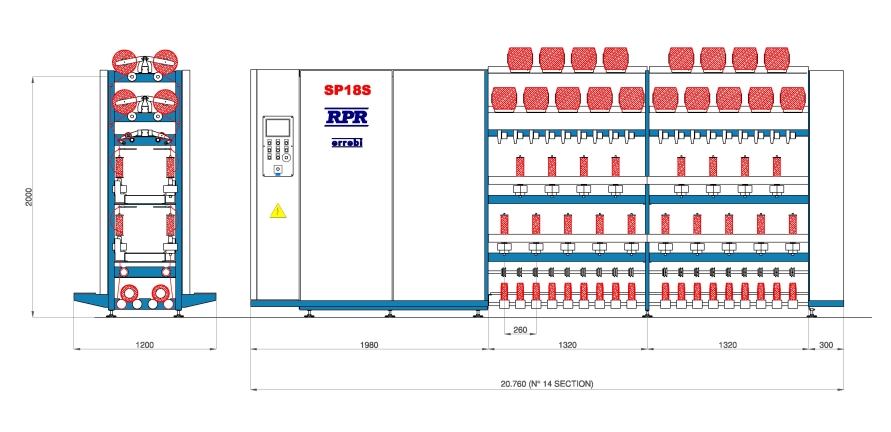

SP-18S Single covering
- 200mm take-up stroke;
- max Ø116mm flanged bobbins;
- 18 spindles per section;

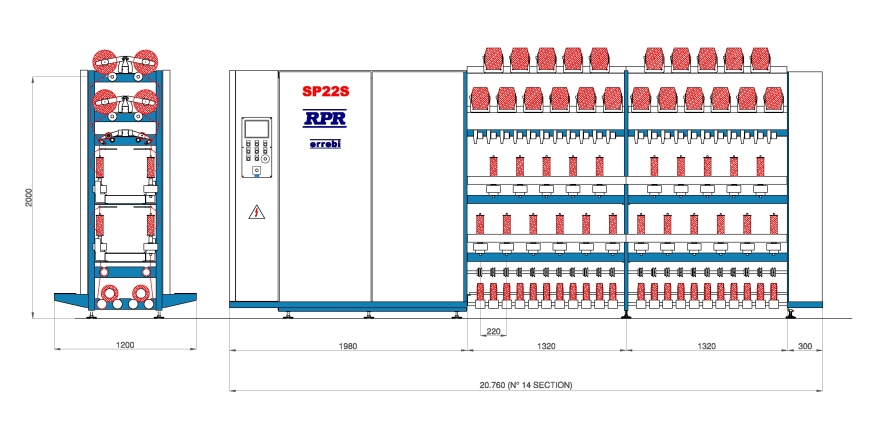

SP-22S Single covering
- 150mm take-up stroke;
- up to Ø84mm flanged bobbins;
- 22 spindles per section;

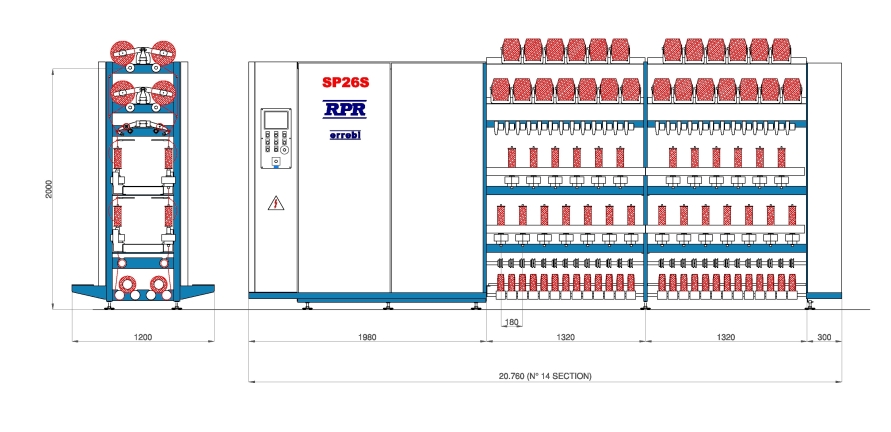

SP-26S Single covering
- 130mm take-up stroke;
- up to Ø76mm flanged bobbins;
- 26 spindles per section;

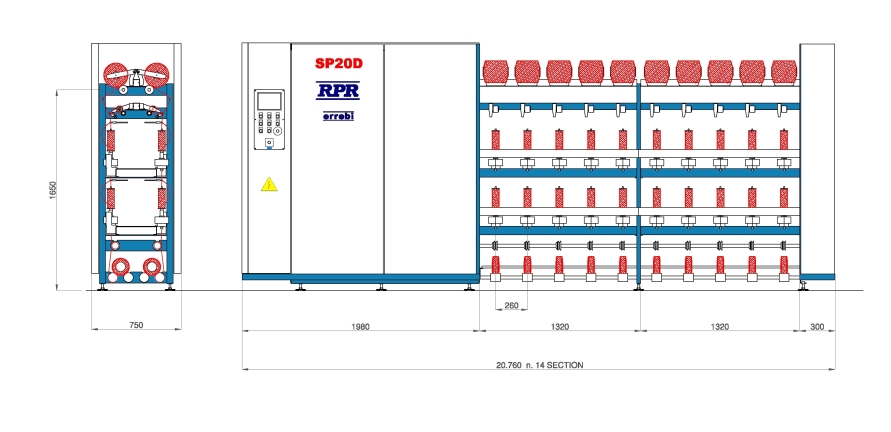

SP-20D Double covering
- 200mm take-up stroke;
- max Ø116mm flanged bobbins;
- 20 spindles per section;

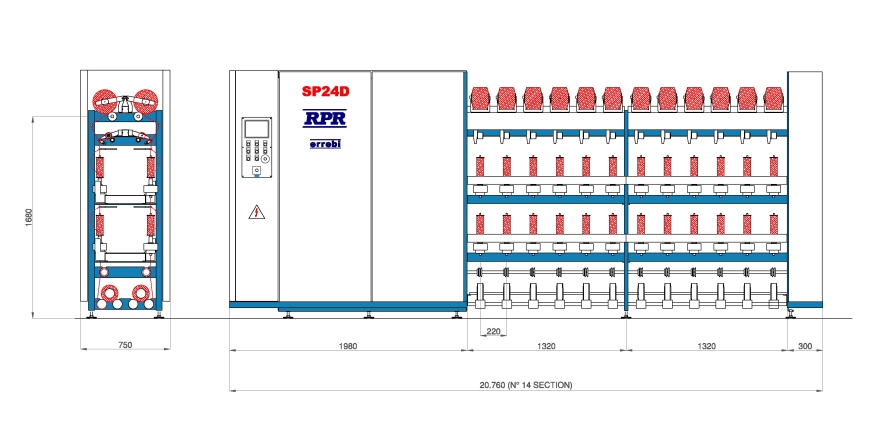

SP-24D Double covering
- 150mm take-up stroke;
- up to Ø84mm flanged bobbins;
- 24 spindles per section;

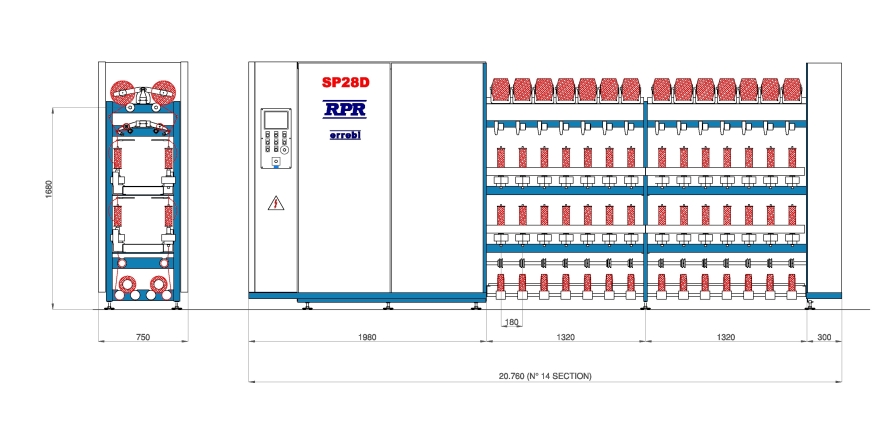

SP-28D Double covering
- 130mm take-up stroke;
- up to Ø76mm flanged bobbins;
- 28 spindles per section;
